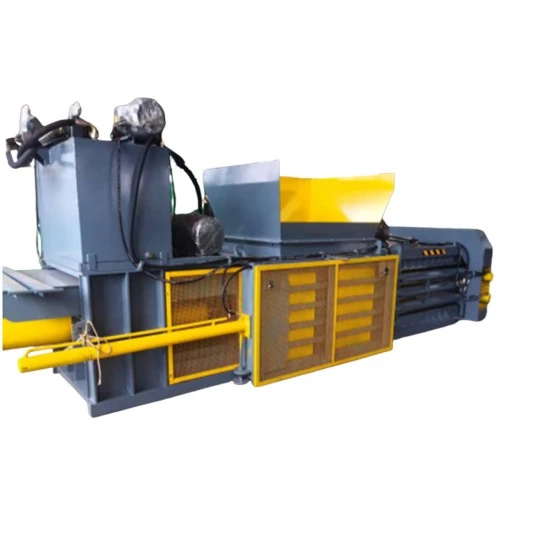

JJ POWER JHA60T - Horizontal Automatic Waste Baler

Reduces waste volume   •   Lowers storage costs   •   Organized workspace   •   Fully automated and safe operation

BASIC SPECIFICATIONS

• Model: JHA60T
• Automation level: automatic packing, automatic threading and automatic tying of wire
• Bale size (L × W × H): adjustable length × 1100 × 850 mm
• Bale weight: 300–400 kg (PET bottles), 300 kg (aluminium cans), 550–650 kg (cardboard) – depending on material
• Feed opening: 1400 × 1100 mm
• Main cylinder: diameter 230 mm
• Main oil pump: HY80Y-RP, variable piston pump
• Auxiliary oil pump: PV2R32-153/31
• Work efficiency: 7–8 bales/hour
• Control system: PLC (Mitsubishi / Xinjie)
• Motor: 18.5 kW
• Voltage: 380 V / 50 Hz (adjustable)
• Machine dimensions (L × W × H): 7500 × 2300 × 2600 mm
• Machine weight: 8800 kg
• Cooling system: water cooling

MAIN ADVANTAGES:

• Fully automated process: automatic packing and automatic threading and tying of wire greatly reduce the need for manual work and increase productivity.
• Large and heavy bales: bale weight up to 650 kg for cardboard and up to 400 kg for PET bottles ensures efficient waste compaction and less frequent removal.
• Wide feed opening: 1400 × 1100 mm allows easy feeding of bulky materials and faster workflow.
• Powerful hydraulic system: the combination of the main piston pump HY80Y-RP and the auxiliary pump PV2R32-153/31 ensures stable and reliable operation.
• Advanced PLC control: control via PLC (Mitsubishi / Xinjie) allows easy use, parameter settings and fast diagnostics.
• Ideal for professional use: suitable for recycling centres, logistics companies, industrial plants and packaging collection centres with larger quantities of waste.

JJ POWER JHA60T - Horizontal Automatic Waste Baler

Possibility of errors. We reserve the right that the product may differ from the listed specifications and prices. Images are symbolic.
