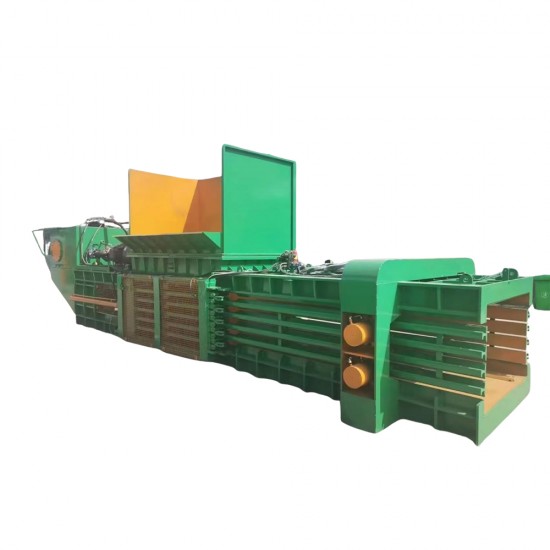

JJ POWER JHA125T - Horizontal Automatic Waste Baler

Reduces waste volume   •   Lowers storage costs   •   Organized workspace   •   Fully automated and safe operation

BASIC SPECIFICATIONS

• Model: JHA125T
• Automation level: automatic packing, automatic threading and automatic tying of wire
• Bale size (L × W × H): 500–2500 × 1100 × 1250 mm (adjustable length)
• Bale weight: 500–600 kg (PET bottles), 300 kg (aluminium cans), 1100–1200 kg (cardboard) – depending on material
• Feed opening: 2000 × 1100 mm
• Main cylinder: diameter 350 mm
• Bale eject method: cylinder push (Cylinder push bag)
• Work efficiency: 5–6 bales/hour
• Control system: PLC (Mitsubishi / Xinjie)
• Motor: 37 + 5.5 kW
• Voltage: 380 V / 50 Hz / 3-phase connection / 900 rpm
• Machine dimensions (L × W × H): 9600 × 2300 × 3600 mm
• Machine weight: 1350 tons

MAIN ADVANTAGES:

• Fully automated process: automatic packing and automatic threading and tying of wire reduce the need for manual work and increase productivity.
• Extremely heavy bales: bale weight up to 1200 kg for cardboard and up to 600 kg for PET bottles provides excellent waste compaction and less frequent and cheaper removal.
• Adjustable bale length: a length range from 500 to 2500 mm allows the bale size to be adapted to storage and transport requirements.
• Large feed opening: 2000 × 1100 mm allows easy feeding of even very bulky materials.
• Advanced PLC control: control via PLC (Mitsubishi / Xinjie) enables reliable operation, easy parameter setting and fast diagnostics.
• Ideal for large waste management systems: an excellent choice for larger recycling centres, industrial complexes, logistics companies and packaging collection centres.
