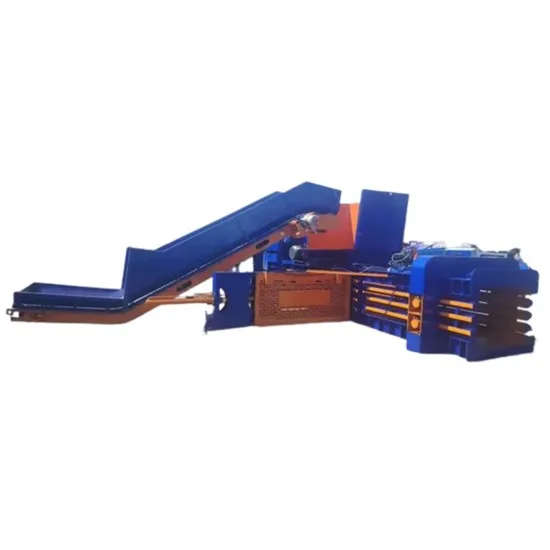

JJ POWER JHA200T - Horizontal Automatic Waste Baler

Reduces waste volume   •   Lowers storage costs   •   Organized workspace   •   Fully automated and safe operation

BASIC SPECIFICATIONS

• Model: JHA200T
• Automation level: automatic packing, automatic threading and automatic tying of wire
• Bale size (L × W × H): 500–2500 × 1100 × 1250 mm (adjustable length)
• Bale weight: 1000–1200 kg (paper – depending on material)
• Feed opening: 2000 × 1100 mm
• Main cylinder: diameter 351 mm
• Bale eject method: cylinder push (Cylinder push bag)
• Work efficiency: 5–6 bales/hour
• Control system: PLC (Mitsubishi / Xinjie)
• Motor: 37 + 5.5 kW
• Voltage: 380 V / 50 Hz / 3-phase connection / 900 rpm
• Machine dimensions (L × W × H): 9600 × 2300 × 3600 mm
• Machine weight: 1350 tons

MAIN ADVANTAGES:

• Complete process automation: automatic packing and automatic threading and tying of wire greatly reduce the need for manual work and increase productivity.
• Extremely heavy paper bales: bale weight up to 1200 kg enables excellent compaction of paper and cardboard waste and a significant reduction in disposal costs.
• Adjustable bale length: a length range from 500 to 2500 mm allows the bale size to be adapted to storage, handling and transport requirements.
• Large feed opening: 2000 × 1100 mm allows easy feeding of large quantities of paper and cardboard and a faster workflow.
• Advanced PLC control: control via PLC (Mitsubishi / Xinjie) ensures reliable operation, easy parameter setting and fast diagnostics of potential faults.
• Ideal for the most demanding environments: an excellent choice for large recycling centres, industrial complexes, printing houses and logistics companies with extremely large quantities of paper waste.
