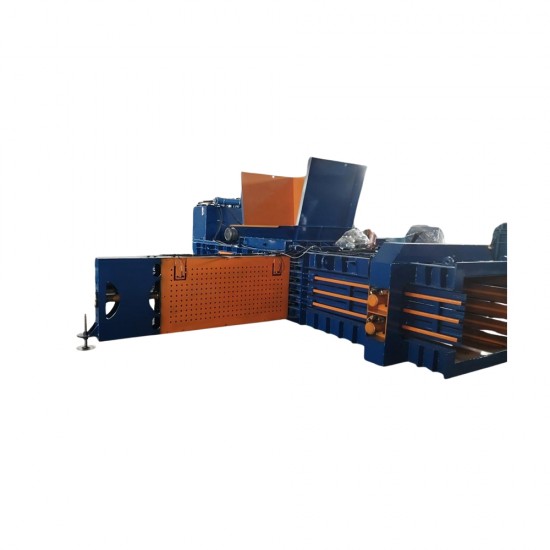

JJ POWER JHA80T - Horizontal Automatic Waste Baler

Reduces waste volume   •   Lowers storage costs   •   Organized workspace   •   Fully automated and safe operation

BASIC SPECIFICATIONS

• Model: JHA80T
• Automation level: automatic packing, automatic threading and automatic tying of wire
• Bale size (L × W × H): 500–2500 × 1100 × 850 mm (adjustable length)
• Bale weight: 400–500 kg (PET bottles), 300 kg (aluminium cans), 750–850 kg (cardboard) – depending on material
• Feed opening: 1400 × 1100 mm
• Main cylinder: diameter 250 mm
• Bale eject method: cylinder push (Cylinder push bag)
• Work efficiency: 4–6 bales/hour
• Control system: PLC (Mitsubishi / Xinjie)
• Motor: 22 kW + 5.5 kW
• Voltage: 380 V / 50 Hz / 3-phase connection / 900 rpm
• Machine dimensions (L × W × H): 7500 × 2300 × 2600 mm
• Machine weight: 9500 kg

MAIN ADVANTAGES:

• Fully automated process: automatic packing and automatic threading and tying of wire greatly reduce the need for manual work and increase productivity.
• Large, heavy bales: bale weight up to 850 kg for cardboard and up to 500 kg for PET bottles ensures efficient waste compaction and less frequent removal.
• Adjustable bale length: a length range from 500 to 2500 mm allows bale size to be adapted to logistics and storage requirements.
• Wide feed opening: 1400 × 1100 mm allows easy feeding of bulky materials and a faster workflow.
• Advanced PLC control: control via PLC (Mitsubishi / Xinjie) provides reliable operation, clear control and easy diagnostics.
• Ideal for professional use: an excellent choice for recycling centres, industrial plants, logistics companies and packaging collection centres with large amounts of waste.
