JJSPA Alpha 9041 - Swim Spa

SWIM SPA FOR COUNTER-CURRENT TRAINING AND RELAXATION

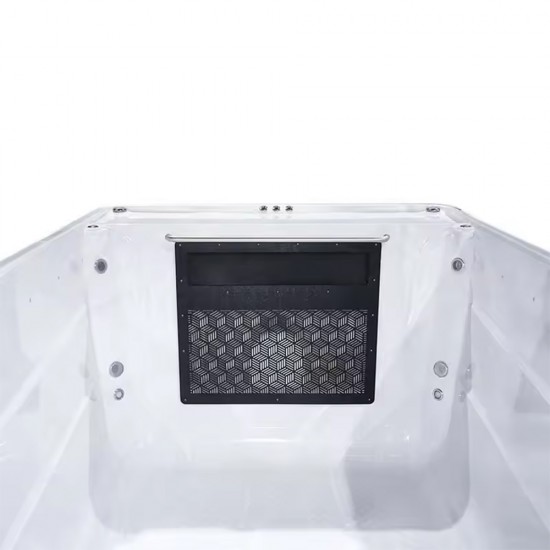

JJSPA Alpha 9041 is a swim spa with separate swimming and massage sections. A 5 kW Turpeto counter-current unit with nine intensity levels supports adjustable swimming and training.

The massage section has four seats with different jet arrangements. The swim spa includes 38 hydromassage jets and 8 air jets for hydromassage of different areas of the body.

The filtration system, with a TP-2233 cartridge filter and an ozone generator, supports clean-water maintenance. The 3 cm ThermaCoat Premium insulation, thermal cover, base tray and additional side and bottom insulation support efficient year-round use. Pre-installation for a heat pump is also included.

BENEFITS OF USING A SWIM SPA

Relaxation   •   Hydromassage of different areas of the body   •   Swimming, recreation or training   •   Support for home recovery   •   A great way to socialise   •   Year-round use

TECHNICAL SPECIFICATIONS OF THE ALPHA 9041 SWIM SPA

BASIC SPECIFICATIONS

 5850 × 2250 × 1500 mm

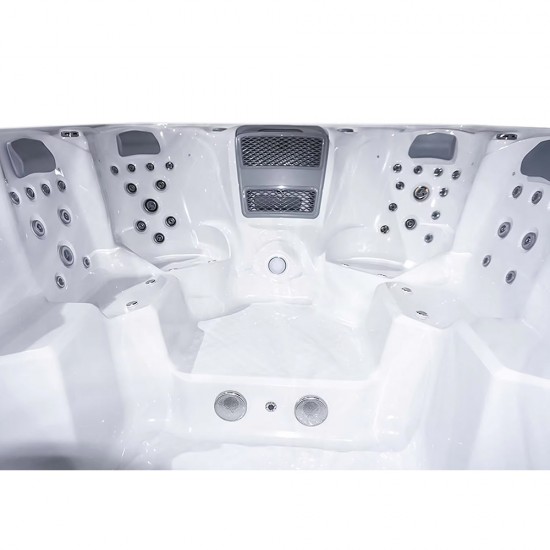

 Massage section: 4 seats; separate swimming section

 38 hydromassage jets and 8 air jets

 Massage pumps: 2 × 2.2 kW; counter-current unit: 5 kW

 1,475 kg

 7,650 litres

 LED RGB lighting

 Heater: 3 kW

INCLUDED EQUIPMENT FOR JJSPA ALPHA 9041

Thermal cover

Steps or ladder

Base tray

Wi-Fi and Bluetooth connectivity

2 speakers

EVA headrests TP-3100

Skimmer

3 fountains and 4 pop-up fountains

Water care kit

Pre-installation for a heat pump

MATERIALS

Cabinet: Wood-effect composite material

Frame: Stainless steel

Shell: Aristech Acrylics acrylic, USA

Base tray: ABS

WARRANTY

2 years

FILTRATION

Cartridge filter TP-2233

Ozone generator

PUMPS AND ELECTRONICS

Turpeto counter-current unit: 5 kW

Circulation pump: 1 × 0.25 kW
Quiet and energy-efficient operation

Massage pumps: 2 × 2.2 kW

Air blower: 1 × 0.7 kW

Balboa BP2100 control system

Balboa ST3 control panel

Counter-current unit control system

Balboa heater: 3 kW

INSULATION

3 cm ThermaCoat Premium foam

Thermal cover and base tray

Additional side and bottom insulation

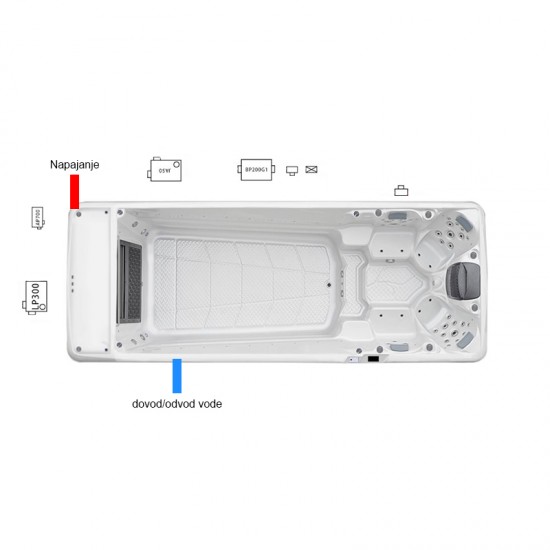

ELECTRICAL CONNECTION REQUIREMENTS

*Consult a service technician before preparing the electrical installation.

COLOURS OF THE ALPHA 9041 SWIM SPA
