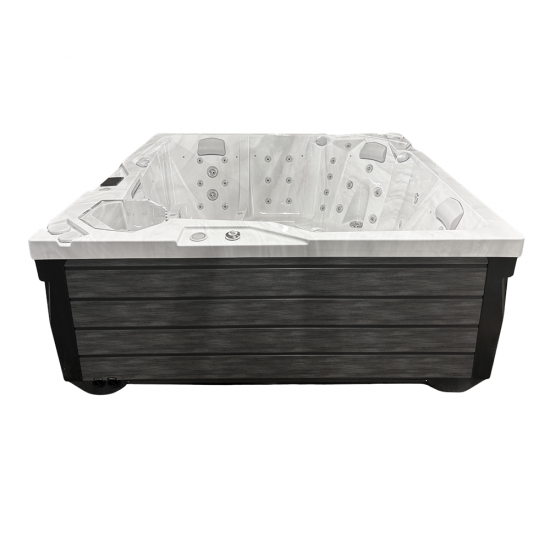

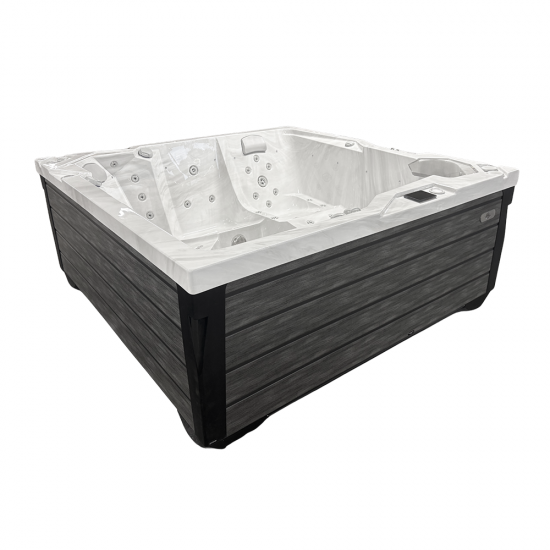

JJSPA Alpha 923 - Hot tub

HOT TUB WITH TWO LOUNGERS AND THREE SEATS

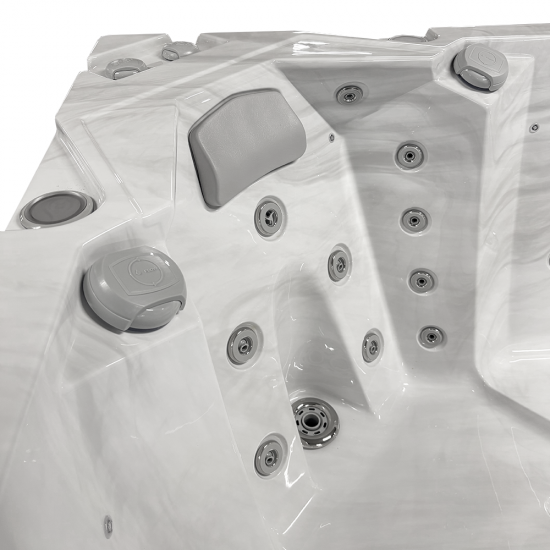

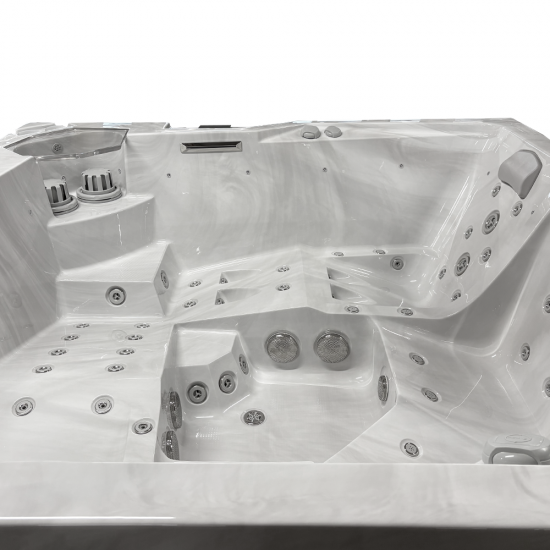

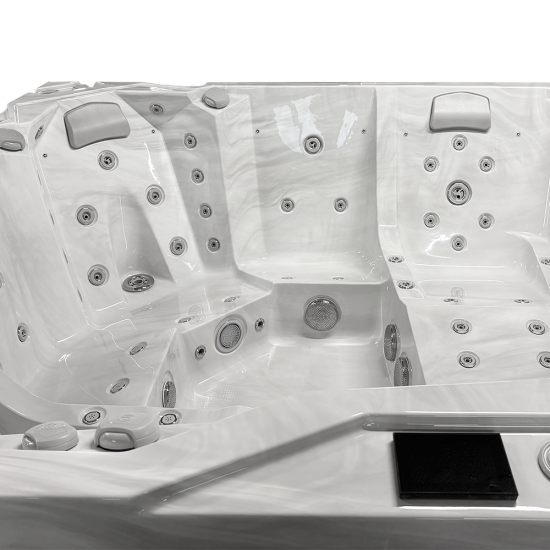

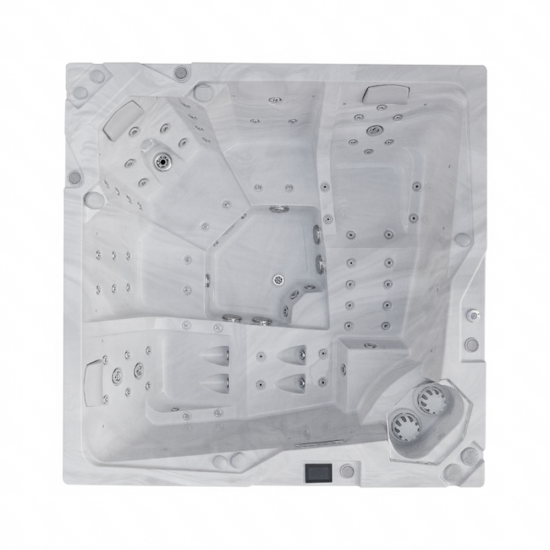

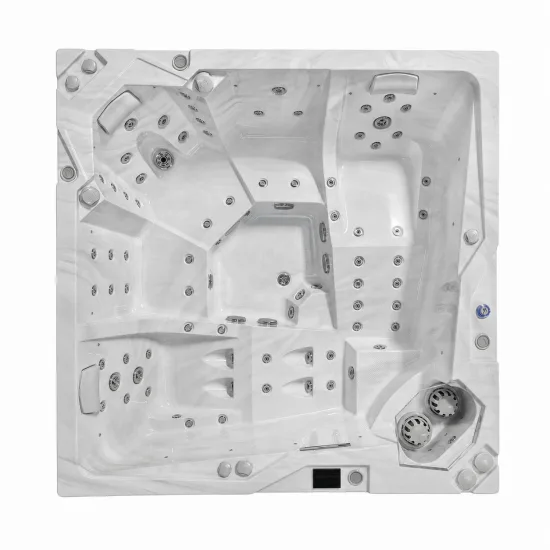

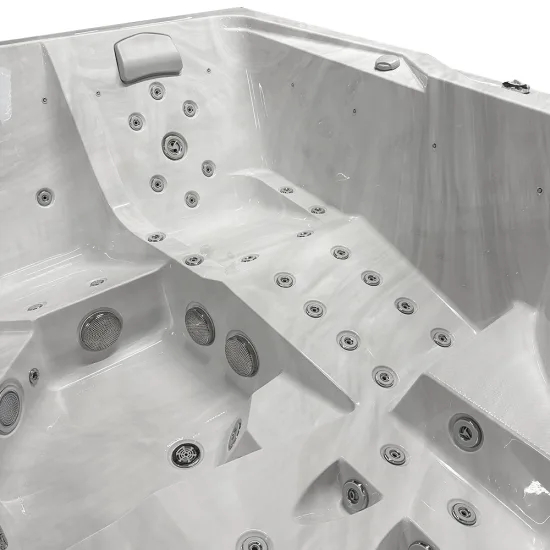

The JJSPA Alpha 923 seats five on two loungers and three seats and holds 1,500 litres of water. Three 2.2 kW massage pumps and a turbo air blower drive 62 hydromassage and 10 air jets.

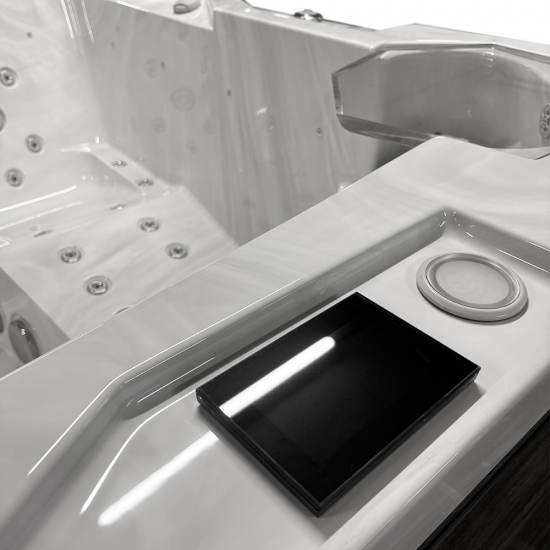

The lighting sets this model apart: an underwater light, corner lights, floor lights and ambient lights. Two speakers with an active subwoofer, a waterfall and four LED drink holders complete the equipment, and it is controlled via the Balboa ST4 display or Wi-Fi. Two cartridge filters, an ozone generator and a Pro-UV steriliser take care of the water, while 3 cm of ThermaCoat Premium insulation, aluminium foil insulation, the thermal cover and the base retain the heat. The outer cladding is also available in aluminium.

BENEFITS OF USING A HOT TUB

Relaxation   •   Maintaining an active lifestyle   •   Relief of muscle tension   •   An ideal way to spend time together   •   Year-round use

TECHNICAL SPECIFICATIONS OF THE ALPHA 923 HOT TUB

BASIC SPECIFICATIONS

 2300 × 2300 × 970 mm

 5 people: 2 loungers and 3 seats

 62 hydromassage jets and 10 air jets

 Massage pumps: 3 × 2.2 kW

 457 kg

 1,500 litres

 LED RGB lighting
Underwater light, corner lights, base lights and ambient lights

 Heater: 3 kW

INCLUDED EQUIPMENT FOR JJSPA ALPHA 923

Thermal cover

Steps

Base tray

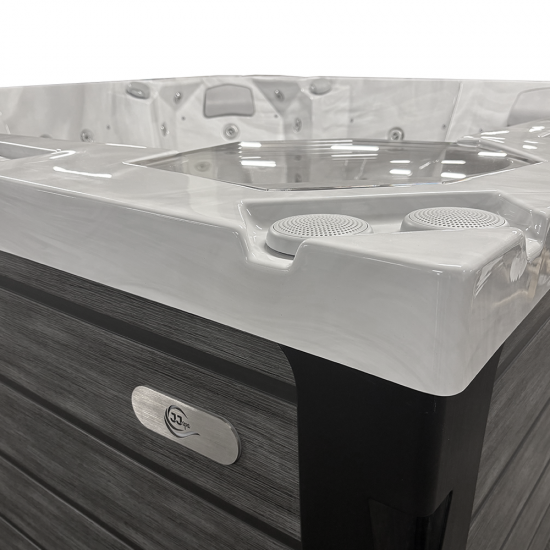

2 speakers with an active subwoofer

EVA headrests

Skimmer

Waterfall and 4 LED drink holders

Water care kit

Aromatherapy

Wi-Fi connectivity

MATERIALS

Cabinet: Wood-effect composite material
Optional aluminium cabinet

Frame: Stainless steel

Shell: Aristech Acrylics

Base tray: ABS

WARRANTY

2 years

FILTRATION

2 cartridge filters

Ozone generator

UV steriliser Pro-UV

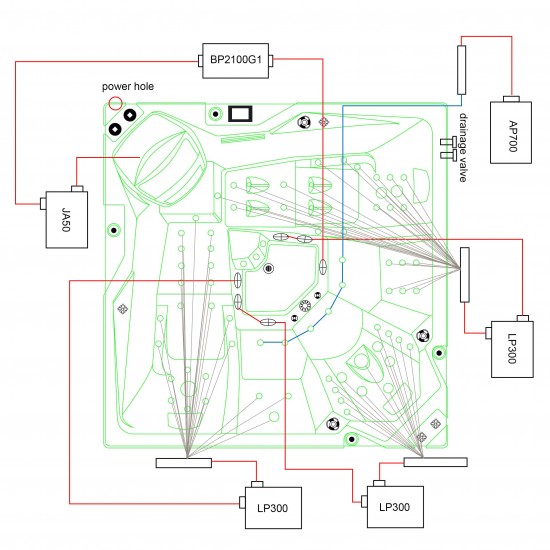

PUMPS AND ELECTRONICS

Circulation pump: 1 × 0.35 kW

Massage pumps: 3 × 2.2 kW

Turbo air blower: 1 × 0.7 kW

Balboa BP2100 control system

Balboa ST4 control panel

Balboa heater: 3 kW

INSULATION

3 cm ThermaCoat Premium foam

Thermal cover and base tray

ELECTRICAL CONNECTION REQUIREMENTS

Permanent connection or cable 3 × 4 mm² with a 25 A Type C circuit breaker, or

Permanent connection or cable 5 × 2.5 mm² with 3 × 16 A Type C circuit breakers.*

*Consult a service technician before preparing the electrical installation.

COLOURS OF THE ALPHA 923 HOT TUB
