JJSPA EcoShelter - Bioclimatic pergola

THE MOST COMPETITIVE SOLUTION FOR PERFECT AIR CONDITIONING ON THE MARKET

The bioclimatic pergola EcoShelter of the JJSPA brand represents an extremely competitive solution on the market, which provides classic terrace shading. With its combination of environmentally friendly materials, it creates a space that offers comfort and shelter. The single-layer slats can be opened at an angle of up to 120°, allowing you to adjust the amount of sun or shade as you wish. Manual opening of the aluminum slats eliminates the need for outdoor electrical wiring, making installation and use easier.

Its minimalist design fits elegantly into any room and invites you to enjoy your time outdoors, on your terms. When the sun is strong, simply open the slats, and when it rains, close them. Side blinds, sliding glass panels or metal panels can be added to the pergola to further adapt the space to your needs.

WHY CHOOSE A BIOCLIMATIC PERGOLA:

Increasing living space   •   Allows use of the terrace throughout the year   •   Protects against precipitation   •   Optimal amount of shade or sun   •   Ventilation   •   Increasing privacy

BASIC SPECIFICATIONS

 3 x 3 x 2,5 m / 3 x 4 x 2,5 m

 Aluminum

 Single-layer slats

Manual opening

 Opening angle 0 - 120 °

 32 kg/m² (10 cm of snow)

 Wind resistance 115 km/h

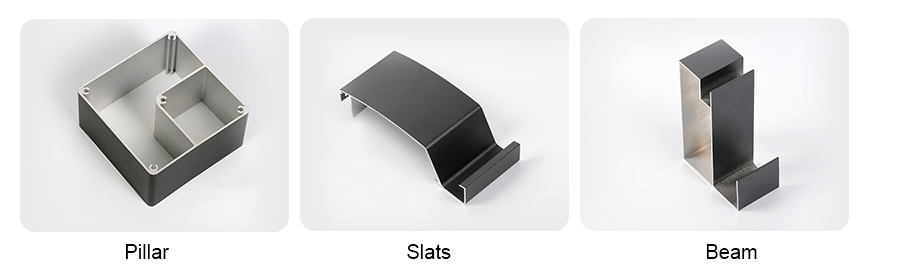

  DIMENSIONS

Pergola: 3 x 3 x 2,5 m / 3 x 4 x 2,5 m

Slats: 140 x 35 x 1,2 mm

Beams: 130 x 90 x 1,8 mm

Columns: 100 x 100 x 1,5 mm

Legs: 160 x 160 x 1 mm

 COLORS

Anthracite RAL 7016

White RAL 9016

 ADDITIONAL EQUIPMENT

Side blinds

Side sliding windows

Side panels

*Additional equipment of bioclimatic pergolas available for an additional fee

  WARRANTY

Construction - 5 years

EFFECTIVE DRAINAGE

The bioclimatic pergola JJSPA EcoShelter has an efficient water drainage system that prevents rainwater from accumulating on the roof of the pergola. The slats have special channels through which the water drains into the side beams, and from there into the columns. These columns have holes on the bottom through which water drains to the outside of the pergola. Thus, the aluminum pergola can be used even on rainy days.

INDEPENDENT PERGOLA FOR SMALL TERRACES

The aluminum pergola JJSPA EcoShelter is among the most competitively priced models in our range, but it provides a comfortable and safe choice of shading for your terrace. Sheet metal with a greater thickness is used in the production, the joints between the p elements are reliable. The EcoShelter pergola can be placed in a free-standing version.
