XSTO SCL170A - Electric Stair Climber
XSTO SCL170A - 2-in-1: FORKLIFT AND STAIR TROLLEY
The XSTO LFT260 electric stair forklift is an efficient lifting device with a 1-meter lifting height, capable of lifting goods up to 170 kg and loading onto a platform or truck. With its lifting function, the SCL170A can lift both itself and the load onto a platform or truck, satisfying all heavy cargo transportation needs.
The SCL170A also serves as a stair transporter, aiding in the transportation of the unloaded goods to higher floors. This multifunctional device facilitates work in various fields of application: logistics, courier services, warehousing, loading and unloading trucks, moving, furniture, household appliances, and other industries, as well as factories, warehouses, offices, residential buildings, outdoor stairs, and other locations.
ADVANTAGES OF THE 2-IN-1 FORKLIFT AND STAIR TRANSPORTER:
Wide applicability • Streamlining of work processes • Easy operation • Portability • Long lifespan • Work safety • High performance • Economical
BASIC SPECIFICATIONS
- Dimensions (h x w x d): 1390 x 585 x 650 mm
- Weight: 54.8 kg
- Load capacity: Max 170 kg
- Lifting height: approx. 1m
- Lifting speed: 20-34 lifts/min
Descent speed: 19-20 lifts/min - Climbing speed: 20-24 steps/minute
- Number of lifts: 230-290 (1 lift = 1 lift + 1 descent)
- Number of lifts per stairs: 52-117 floors (936-1873 steps)
- Battery: Li-Ion 48 V / 10 Ah
- Protection class: IP54
- Foldable handle
FEATURES OF XSTO SCL170A
- Multiple functions in one device: transporter and forklift in one device
- Excellent safety: Emergency stop button and brake
- Foldable handle: Reduces storage space
- Self-loading onto trucks
- Ergonomic design: Besides functionality, the design allows ergonomic operation
- Performance: Excellent lithium-ion battery capable of up to 398 lifts
- Easy operation: Via buttons on the electric lifting frame

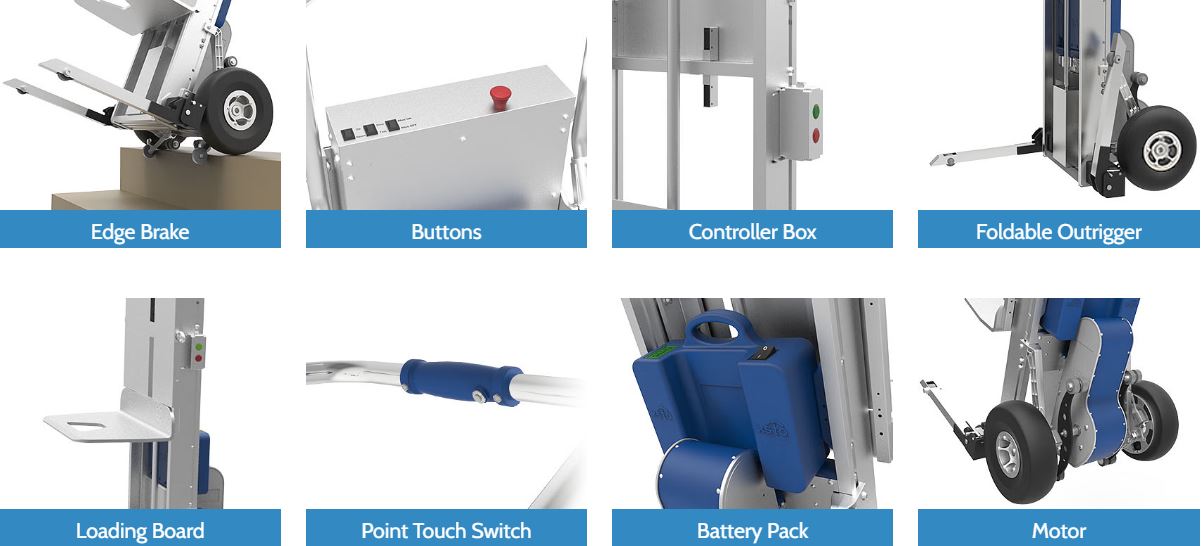

COMPONENTS - FORKLIFT AND TRANSPORTER XSTO SCL170A
01: Operation button
02: Emergency stop button
03: Back panel
04: Safety strap holder
05: Aluminum loading and lifting plate
06: Non-slip solid rubber wheels
07: Stability legs to assist in support during loading or unloading
08: Upper aluminum handle
09: Buttons for controlling speed and direction when driving on stairs
10: Button for lifting or lowering the loading plate
11: High-capacity lithium-ion battery powering stacker functions
12: Motor housing, tightly sealed against dust, water, and dirt
13: Climbing wheels for ascending stairs

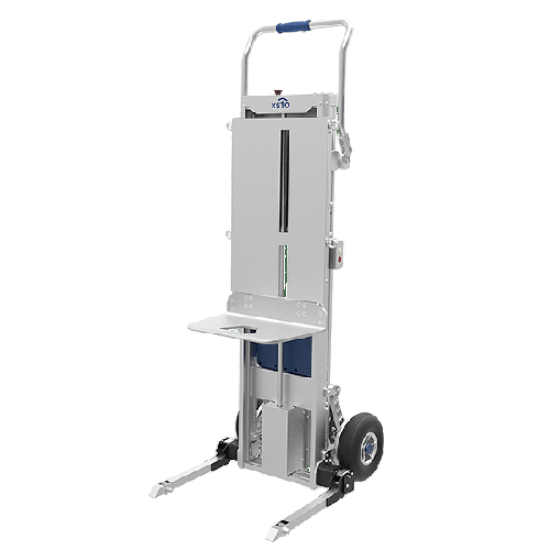

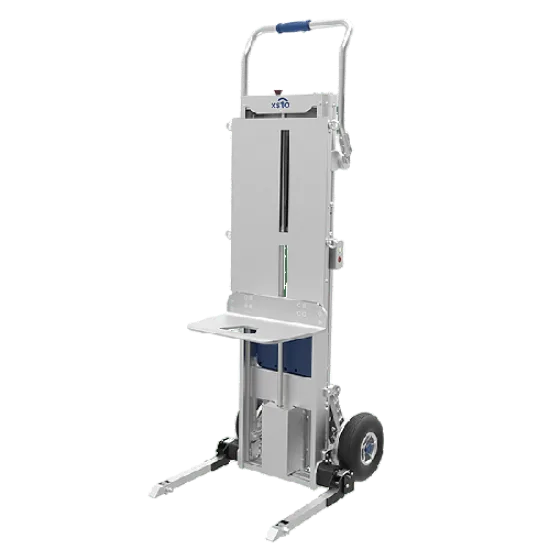

XSTO SCL170A - Electric stair climber
Possibility of errors. We reserve the right to make product changes based on specifications and images.
